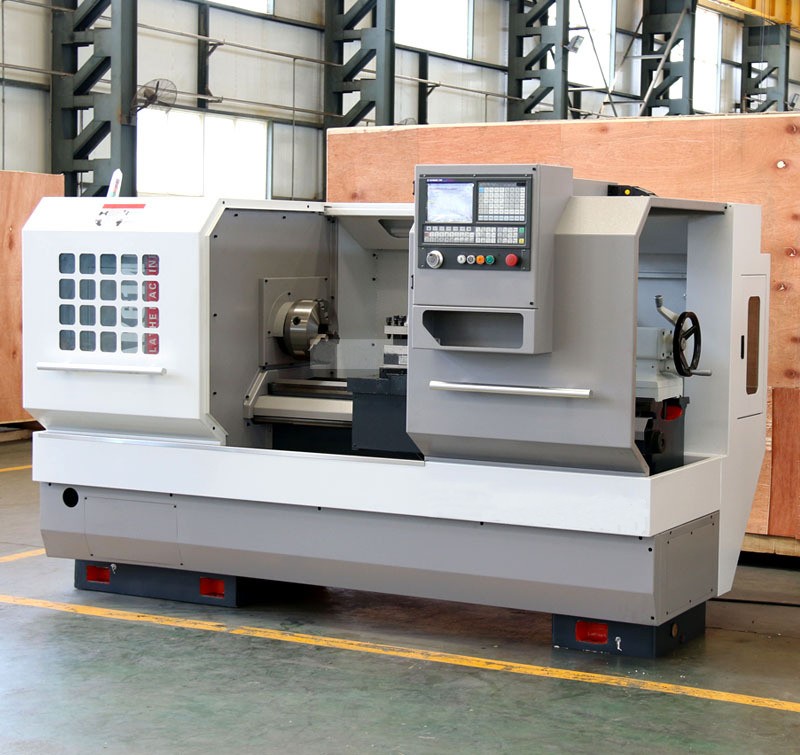

CAK6140系列硬軌數控車床
立即咨詢
聯系熱線 15863228629
◆滾動軸承支承主軸，回轉精度高
◆全封閉罩殼，安全可靠
◆外形設計美觀
◆功能全面、加工效率高、操作簡便
| 主要技術參數 | SPECIFICATIONS | Units | CAK6140 |
| CAK6140B | |||
| CAK6140C | |||
| 床身上更大回轉直徑 | Swing over bed | mm | 400 |
| 橫滑板上更大回轉直徑 | Swing over cross slide | mm | 180 |
| 更大工件長度 | Distance between centers | mm | 750/1000/1500/2000/3000 |
| 主軸孔徑范圍 | Spindle bore | mm | 52,(80 for B),[105 for C] |
| 主軸孔徑錐度 | Spindle bore taper | - | MT6,(φ90 1:20 for B),[φ113 1:20 for C] |
| 主軸鼻端型號 | Spindle nose type | - | C6,(D8 for B),[D8 for C] |
| 主軸轉速級數 | Spindle speed steps | - | 手動3檔Manual 3 steps (選配Optional: stepless) |
| 主軸轉速范圍 | Spindle speed range | rpm | 21-150,66-500,162-1500 (選配Optional: 100-1600 ) |
| 刀架類型 | Turret/tool post | - | 4工位電動刀架 |
| Eletric 4 position | |||
| 刀具尺寸 | Tool size | mm | 25 x 25 |
| X軸行程 | X axis travel | mm | 200 |
| Z軸行程 | Z axis travel | mm | 750/1000/1500/2000/3000 |
| X軸快速進給速度 | X axis rapid traverse | mm/min | 6000 |
| Z軸快速進給速度 | Z axis rapid traverse | mm/min | 10000 |
| 尾座套筒直徑 | Tailstock quill diameter | mm | 75 |
| 尾座套筒錐度 | Tailstock quill taper | - | MT5 |
| 尾座套筒行程 | Tailstock quill travel | mm | 150 |
| 主軸電機 | Main spindle motor | kw | 7.5 |
| 冷卻泵電機 | Coolant pump motor | kw | 0.125 |
| 機床重量 | Weight for 750 | kg | 2450 |
| Machine weight | |||
| Weight for 1000 | kg | 2550 | |
| Weight for 1500 | kg | 2650 | |
| Weight for 2000 | kg | 3050 | |
| Weight for 3000 | kg | 3850 | |
| 外形尺寸 | Dimension for 750 | mm | 2550x1650x1700 |
| Overall dimension | |||
| Dimension for 1000 | mm | 2750x1650x1700 | |
| Dimension for 1500 | mm | 3250x1650x1700 | |
| Dimension for 2000 | mm | 3700x1650x1700 | |
| Dimension for 3000 | mm | 4710x1650x1700 |
